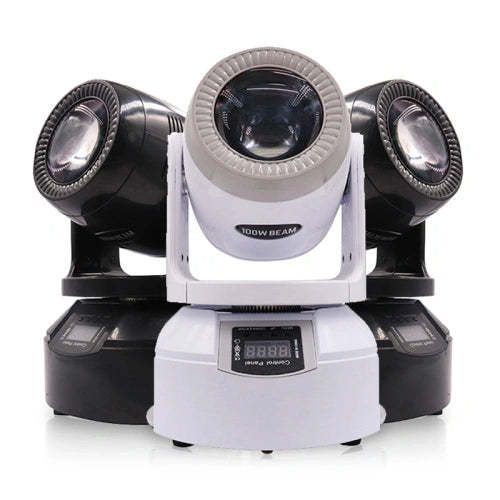

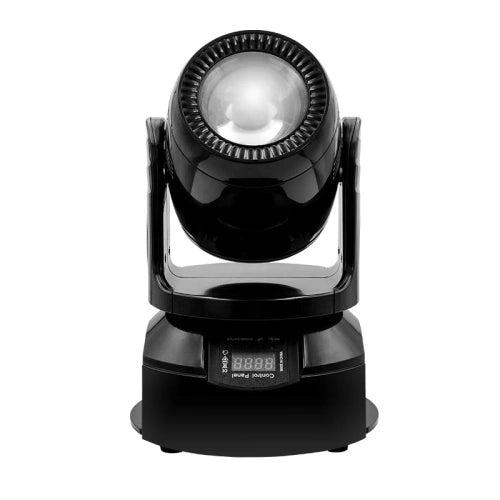

Buskreps LED Moving Head 100w Beam Rotating Pattern For Night Club Wedding Theater
Download
| Moving Head Light LB100 |
Color Temperature: 9910K
Lamp Luminous Efficiency(lm/w): 5.21
Color Rendering Index(Ra): 90
Working Lifetime(Hour: 50000
Luminous Efficacy: 5.21lm/w

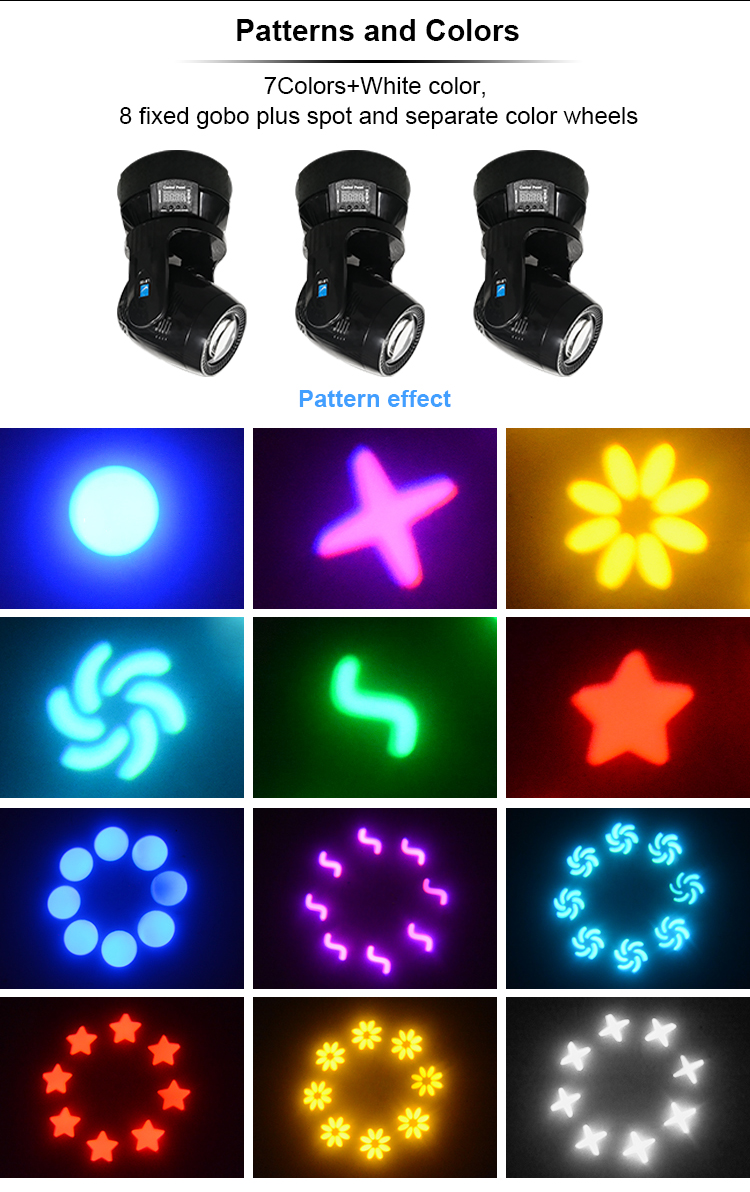

Color Wheel: 7 colors + white color
Prism: 8 facet prism, forward and reverse rotation
Light Source: High power 100W white LED

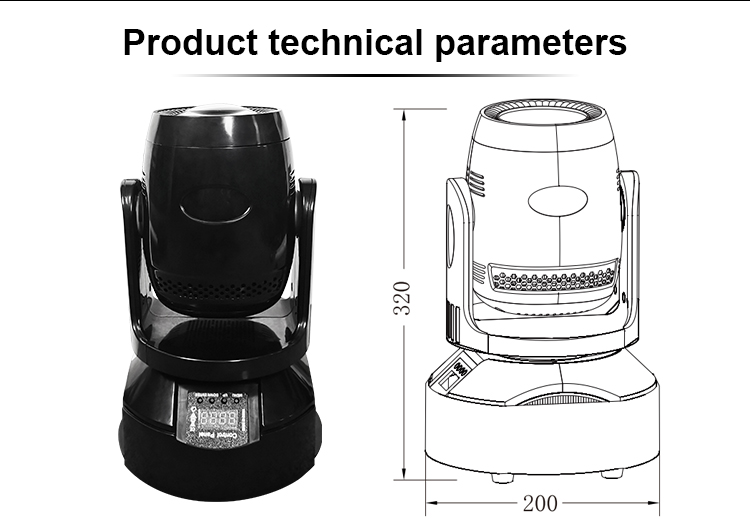

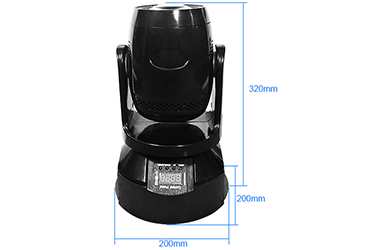

Product Size: 320*200*200mm
 | 100W High brightness bulb _________________ Light Source:Hight power 100W White LED |
3m illumination can up to 28040lux _____________ | Beam Angle 3.6° Luminous flux 438.2lm _____________ | Color Temperature 9920K _____________ |
 |
 |
 |
 |
 |
 | Lamp bead: _________ Imported beads are used for better |

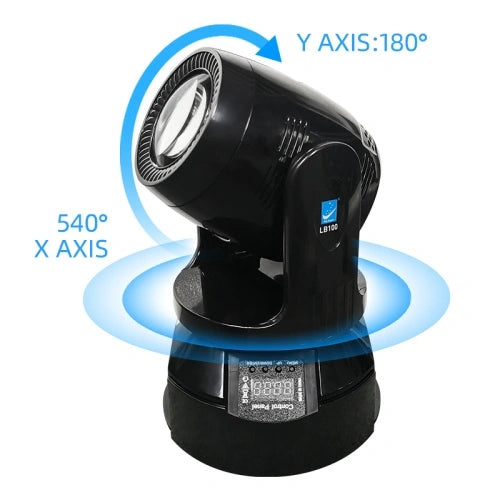

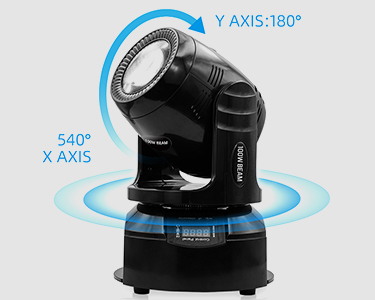

Movement Angle: _________ Operating angle: pan 540° tilt 180° |  |

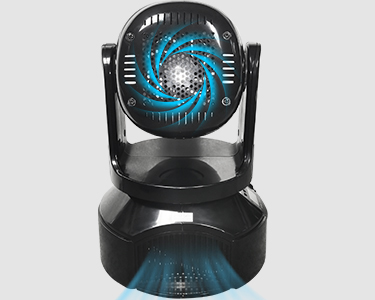

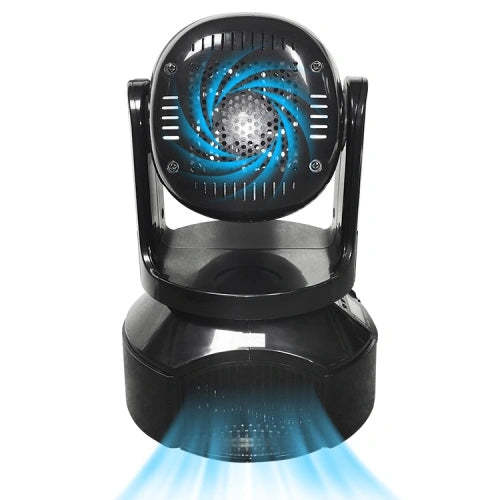

 | Intelligent heat dissipation: _________ A wide range of comprehensive heat |

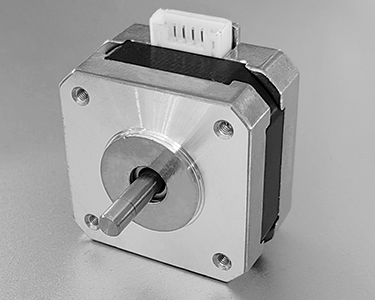

High speed motor: _________ Energy saving, strong controllability, Low noise and vibration. |  |

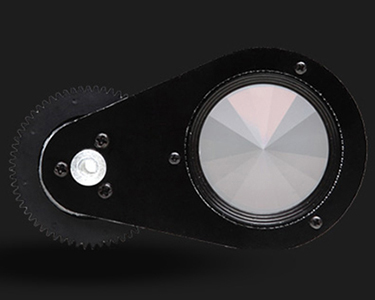

 | 8 prisms: _________ To achieve from nothing, |

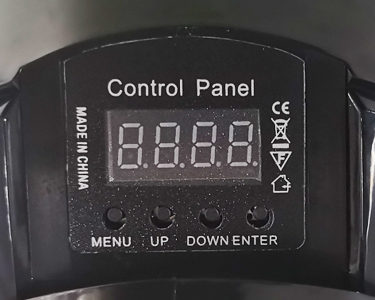

Digital display: _________ Adjustment is more convenient, the value is more beautiful and easy to understand. |  |

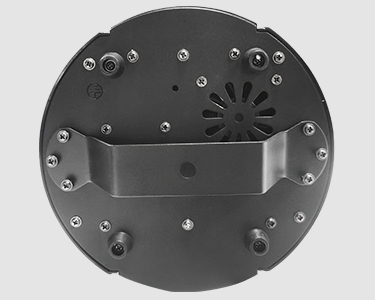

 | Easy installation: _________ Can be installed in the open with a |
High quality power supply: _________ Good safety performance, Long service life, Anti-corrosion and wear-resisting, Good flame retardancy. |  |
 |
Widely used in KTV, bars, clubs, discos, stage and other places atmosphere lamp shaking beam spotlight color rotating lights LED pattern lights. |
| Product parameters | |
| Model : LB100 | Luminance Flux : 438.2 lm |
| Size : 200*200*320mm | Color : 7 color + blank color |

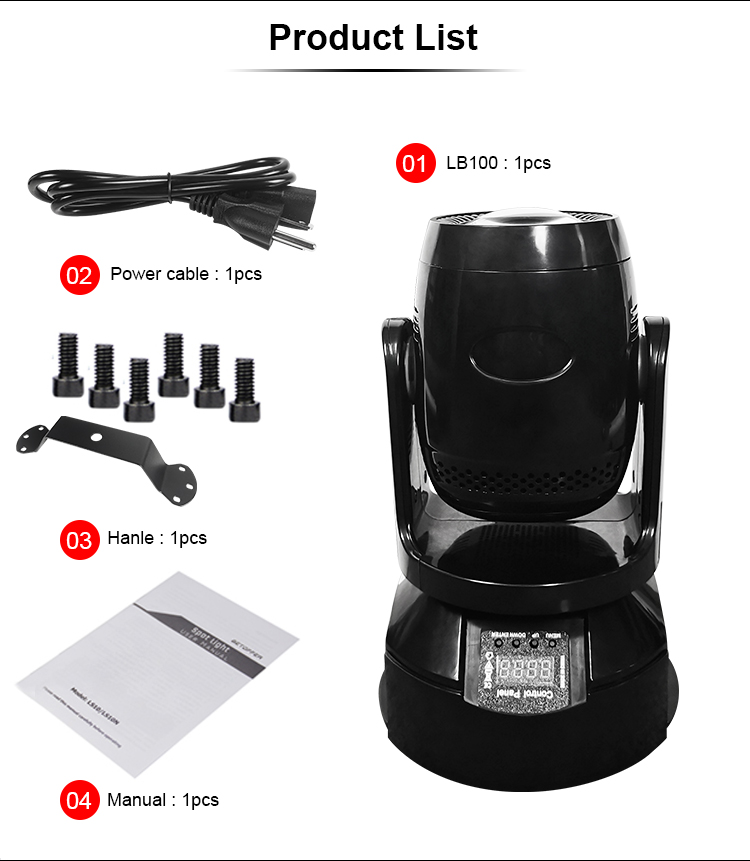

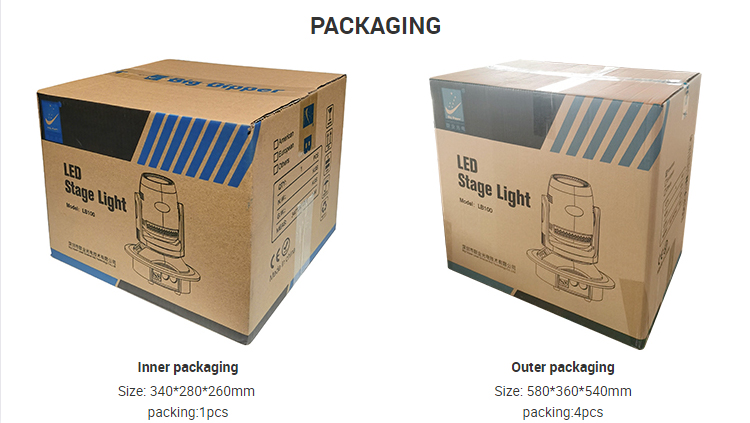

| Packing : 1pcs/4pcs | Gobo : 8 Fixed gobo |
| N.W / G.W: About 15.4kg / 17.9kg | Channel : 12CH |
| Power Supply : AC100-240V 50/60Hz | 3m illumination :28040lux |
| Rated Power :120W | Color rendering index: 67Ra |
| Movement Angle : pan:540° Tilt : 180° | Color rendering index: 67Ra |
| Beam Angle : 3.6° | Application: Stage wedding party bar Disco place |
| Control Model : Sound / Auto / DMX512 / Master-slave | |
| Power supply parameters | |||
| Input voltage | Input current | Input power | Power factor |
| 100V / 60Hz | 1.546A | 103.8W | 0.676PF |
| 110V / 60Hz | 1.354A | 100.5W | 0.678PF |
| 120V / 60Hz | 1.236A | 98.6W | 0.674PF |
| 220V / 50Hz | 0.722A | 96.4W | 0.614PF |
| 230V / 50Hz | 0.692A | 95.5W | 0.601PF |
| 240V / 50Hz | 0.67A | 95.2W | 0.602PF |
| Lamp high&low temperature testing | ||
| / | Ambient temperature | |
| -25℃ | +40℃ | |
| Whole machine power | 83.75 W | 83.75 W |
| Light flux | 438.2 lm | 438.2 lm |
| Color temperature | 9920 K | 9920 K |
| Color rendering index | 67 Ra | 67 Ra |
| Waves length | 478.7 nm | 478.7 nm |
 |
 |
